Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1000 watt
Supply Capability:10000 watt/month

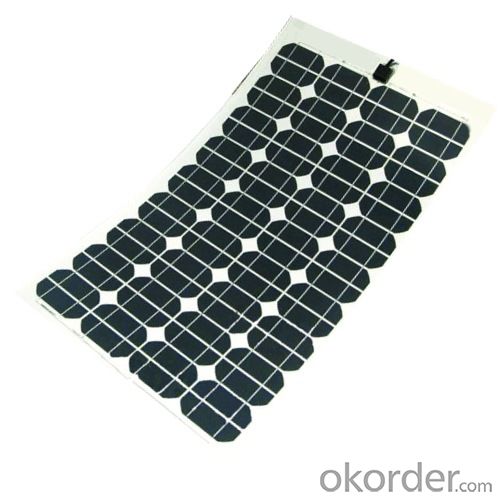

New designed flexible solar panel china for China Manufacturers
1. Our flexible solar panel is perfect for boat or other applications where fixed power is available. Its maximum bending radius of 30 ° And a thickness of only 4mm;
2. Suitable for curved oppvlakten like the deck of a boat or the roof of an RV.
3. With proper installation it is suitable to run over it.
4. Assembly is easy to realize itself with the kit available in our shop or through the 4, connection holes in the corners of the panel.
5. All our flexible solar panels are made up of Class A high efficiency Sunpower U. S.
Solar cells. These cells reach their high efficiency including through the metal contacts
Moving from the front to the rear and by the broadening of the contacts, there is less loss power.
6. Equipped with 0.5 m cable and MC4 connectors.
New designed flexible solar panel china for China Manufacturers
1. Flexible solar panel is perfect for boat or other applications where fixed power is available. Its maximum bending radius of 30 ° And a thickness of only 4mm;
2. Suitable for curved oppvlakten like the deck of a boat or the roof of an RV.
3. With proper installation it is suitable to run over it.
4. Assembly is easy to realize itself with the kit available in our shop or through the 4, connection holes in the corners of the panel.
5. All our flexible solar panels are made up of Class A high efficiency Sunpower U. S.
Solar cells. These cells reach their high efficiency including through the metal contacts
Moving from the front to the rear and by the broadening of the contacts, there is less loss power.
6. Equipped with 0.5 m cable and MC4 connectors.
Why Choose Flexible:
1). Professional Manufacturers Of Mono & Poly Silicon PV Module
2). High Conversion Efficiency Solar Module
3). High transmission rate and low iron tempered glass
4). Anti-aging EVA, high frame resistant TPT to laminate and anodized aluminum alloy frame
5). Be resistant to atmospheric exposure and effects of delaminating
6). Strict quality control and power classification of modules
7). Full passport certificate ISO9001, ISO1400, OHSAS18001, CE, TUV IEC/EN61215 IEC/EN61730
8). 25years Warranty, 90% of original efficiency in 10years, and 80% in 25years.
FAQ
1. Q: Do you have your own factory?
A: Yes, we have. Our factory located in shenzhen city, guangdong province.
2. Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will show you the way, or arrange time to pick you up if possible.
3. Q: Do you provide free sample?
A: Usually we do not offer free sample
4. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do that.
5. Q: Do you accept custom design on size?
A: Yes, if the size is reasonable.
6. Q: How do you overcome the anti-dumping and countervailing duties?
A: We can use original Taiwan solar cells, and provide Certificate of Origin of Taiwan.
7. Q: How can I be your agent in my country?
A: Please leave feedback. It's better for us to talk about details by email.
8. Q: Do you have solar project engineer who can guide me to install system?
A: Yes, we have a professional engineer team. They can teach you how to install a solar system.
| Module size (mm): | 535*1050 |
| Cell Type | 125x125 |
| Weight(kg) | 3 |
| Power tolerance: | +/-3% |
| Nominal peak power(WP): | 140 |
| Nominal voltage(V): | 17.6 |
| Nominal current (A): | 5.68 |
| NOCT: | 45+/-2°C |
| Voltage temperature coefficient: | -0.33%/°C |
| Current temperature coefficient: | +0.05%/°C |
| Power temperature coefficient: | -0.23%/°C |
| Open circuit voltage (Voc): | 20.8 |
| Short cirsuit current(Isc): | 6.14 |
| Conversion efficiency: | 20.41% |
| Operating temperature: | -40 to+85°C |
| Max system voltage: | 1000V DC |
