140 Type Steel Frame Formwork for Wall and Column and Beam Construction

Loading Port:Tianjin

Payment Terms:TT or LC

Min Order Qty:200 m²

Supply Capability:50000 m²/month

Product Description:

1. Structure of 140 Steel frame formwork

With adjustable flexiable sizes of frame, the 140 series steel formwork is a heavy-bearing steel frame formwork works with steel frame, plywood and lock. It is widely used in various projects and reduce cost by using standardized sizes of forms as well. The concrete surface is quite clean.

2. Main Features of 140 Steel frame formwork-Column formwork

Few parts for fast forming.

Max. Concrete pressure: 80KN/m2.

Hot-dip galvanized steel frame.

The thickness of plywood is 18mm & the panel is 350px..

Compatibility with Hunnebeck Manto system due to similar edge profile.

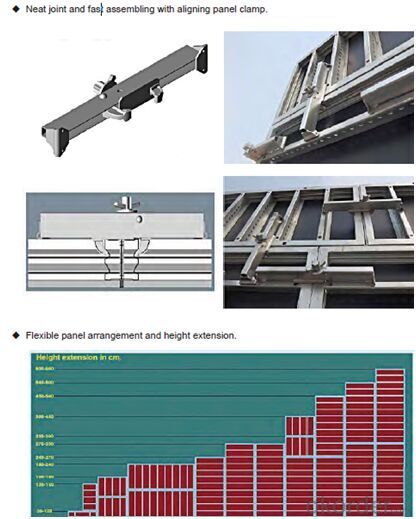

3. 140 Steel frame formwork-column formwork Images

140 Type Steel Frame Formwork for Wall and Column and Beam Construction





 4. 140 Steel Frame Formwork Specifications

140 Type Steel Frame Formwork for Wall and Column and Beam Construction



140 Type Steel Frame Formwork for Wall and Column and Beam Construction



140 Type Steel Frame Formwork for Wall and Column and Beam Construction



5. FAQ of 140 Steel Frame Formwork



1) What can we do for you?

    .We can ensure the quality of the140 Steel frame formwork and avoid extra expenses for customers.

    .We can provide you the professional technical team.

    .We can provide professional building proposal for your projects.



2) What promises can be done by us?

   . please feel free to write us for any QUOTE.

   . If need any technical and building assistance, we could provide on-site professional staff for instruction.

   . Please DO check goods when courier knocks your door and contact us asap if any issueS.



3) What about of our after-sale services?

   . Response will be carried out  in 24hours  after receiving any complain or request.

   . Any formwork cost can be refund after order is confirmed.

   . If the products are not based on the requirements, there will be the relevant compensations made for you.



 4) What about the package and shipping time?

    .Packing: wood package and adhesive tape

    .Shipping: by sea

     Shipping time: Normally small orders, it just1week business days to arrive your hand; When comes to the customs declaration, it may need 2weeks.
