Loading Port:Shekou
Payment Terms:TT OR LC
Min Order Qty:1 pc
Supply Capability:99999 pc/month
The first to work out the integrated style design in the world，which is simple，fashionable，portableand practical; With solar energy to supply the power，protection of the earth resources; With infrared human body induction technology，when someone comes，light work with full power, otherwise work with low power，backup a longer lighting time;
With lithium-ion LiFePO4 battery to ensure a longer lifespan;
Without cable，easy for installation; Waterproof，safe and reliable;
With the idea of modular design,convenient for installation,maintenance and repair;
Using Aluminum alloy as the main body material with good rust and corrosion resistance.
| Model: | HYTN-CSSTY-212(With Sensor) | ||||

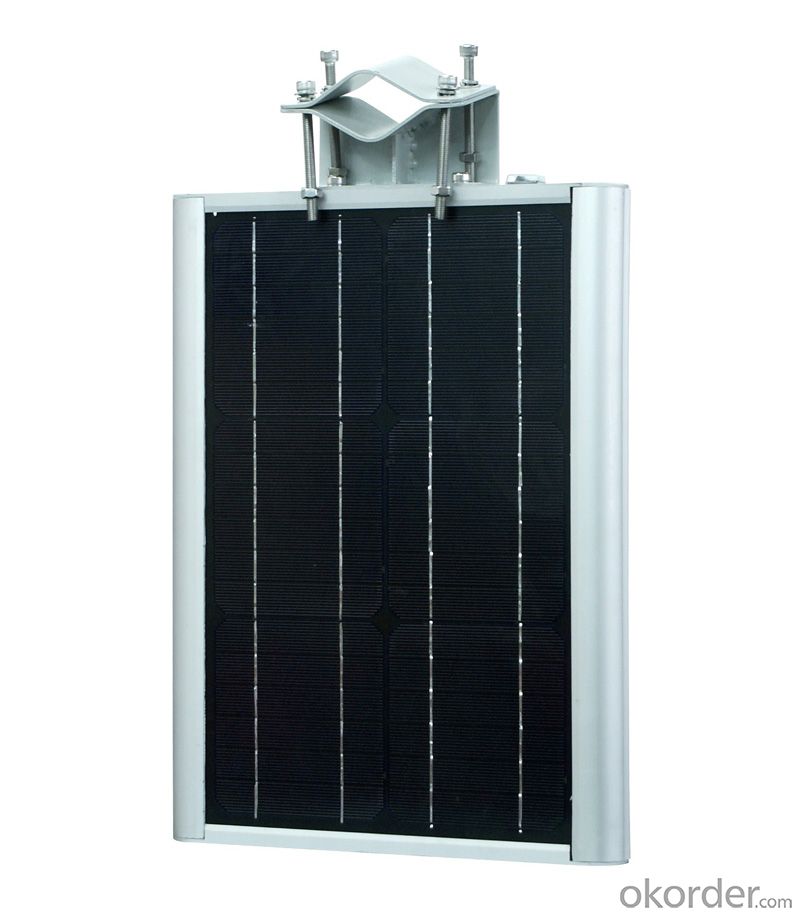

| Solar panel Max power: | 18V 20W (high efficiency imported silicon solar cell) | ||||
| Solar panel Life time: | 25 years | ||||
| Battery Type: | lithium battery(Life time 5 years) | ||||
| LED Max power: | 12V 12W | ||||
| Led chip brand: | Epistar from Taiwan with high brightness | ||||
| Lumen (LM): | 1200-1320lm | ||||
| LED Life time: | 50000hours | ||||
| Lighting Viewing Angle: | 120° | ||||
| Charge time(by sun): | 6-7hours (ith enough strong shine) | ||||
| Discharge time: | more than 20 hours (saving mode) | ||||
| Working TEMP( ℃ ) | -20℃～+60℃ | ||||
| CCT (k): | 6500k-7000k | ||||
| Mounting height(m): | 3-4m | |||
| Space between light(m): | 8-10m | |||
| Lamps material of main: | aluminium alloy | |||
| Certificate: | ISO/CE / ROHS / IP65 | |||
| Warranty period: | 2years | |||
| Unit size: | 515*320*52mm | |||
| N.W: | 5.8kg | |||
| Inner box: | 530*390*140MM | |||
| Carton size: | 560*W570*H410MM | |||
| Q'ty/ctn: | 4sets/ctn | |||
| GW.for carton: | 27kg | |||
| 20GP container: | 800pcs | |||
| 40GP container: | 1600pcs | |||
