Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1000 watt
Supply Capability:10000 watt/month
New designed flexible solar panel 12v for China Manufacturers

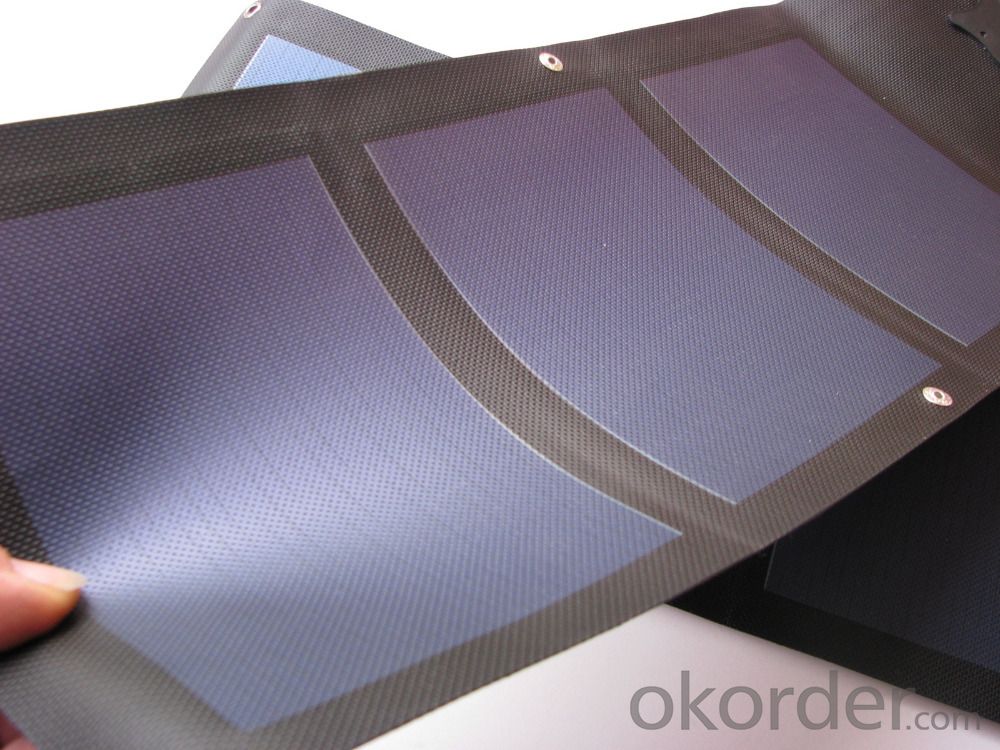

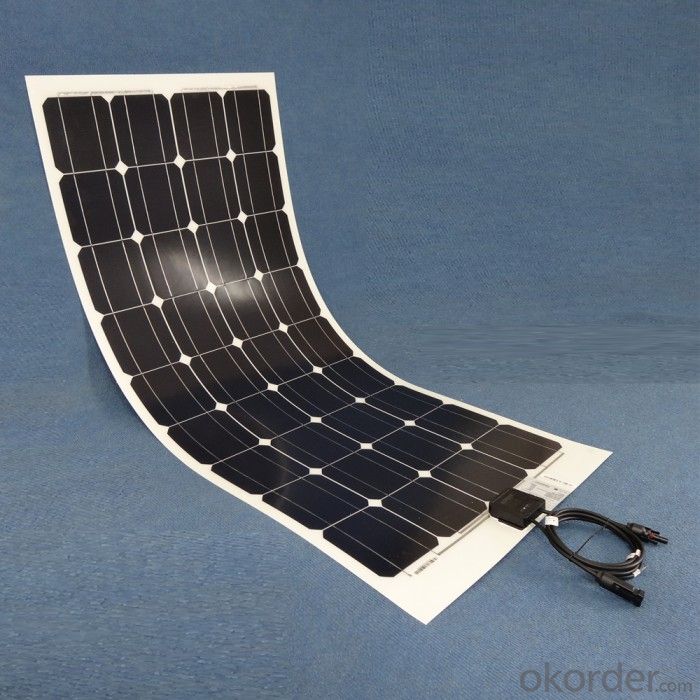

Flexible solar panel are designed to provide a powerful charging solution for batteries and conform to almost any surface. Unlike other 'flexible' products, these use high-efficiency monocrystalline cells that produce more power per square foot than any other flexible panel on the market.
An impermeable lamination coats the entire module, allowing it to contour and flex against curved areas, eliminating any need for custom mounts.
The panel can be affixed by adhesive or screw mounting options and grommets are an added bonus for ease-of-installation. The thin, lightweight module can also be sewn into canvas, making it a truly versatile solar module.
The Solar Flex panels are aerodynamic and DURABLE - a virtually unbreakable solar battery charger for RVs, boats and long-haul trucks.
Why Choose Us:
1). Professional Manufacturers Of Mono & Poly Silicon PV Module
2). High Conversion Efficiency Solar Module
3). High transmission rate and low iron tempered glass
4). Anti-aging EVA, high frame resistant TPT to laminate and anodized aluminum alloy frame
5). Be resistant to atmospheric exposure and effects of delaminating
6). Strict quality control and power classification of modules
7). Full passport certificate ISO9001, ISO1400, OHSAS18001, CE, TUV IEC/EN61215 IEC/EN61730
8). 25years Warranty, 90% of original efficiency in 10years, and 80% in 25years.
WHY US?
1. We have our own production line of solar cells.
2. Our solar panels are good quality with OEM service.
Our products are backed by an industry standard 5/10/25 warranty to assure the longevitiy of your system. Not only this, we assure the quality of our modules with 100% infrared scanning to go with our standard quality assurance procedures. Depending on the availability by your location, we may also be able to offer liability insurance coverage for our products.
| Module size (mm): | 535*1050 |
| Cell Type | 125x125 |
| Weight(kg) | 3 |
| Power tolerance: | +/-3% |
| Nominal peak power(WP): | 100 |
| Nominal voltage(V): | 17.6 |
| Nominal current (A): | 5.68 |
| NOCT: | 45+/-2°C |
| Voltage temperature coefficient: | -0.33%/°C |
| Current temperature coefficient: | +0.05%/°C |
| Power temperature coefficient: | -0.23%/°C |
| Open circuit voltage (Voc): | 20.8 |
| Short cirsuit current(Isc): | 6.14 |
| Conversion efficiency: | 20.41% |
| Operating temperature: | -40 to+85°C |
| Max system voltage: | 1000V DC |
