Loading Port:Tianjin
Payment Terms:TT OR LC
Min Order Qty:1000 watt
Supply Capability:10000000 watt/month

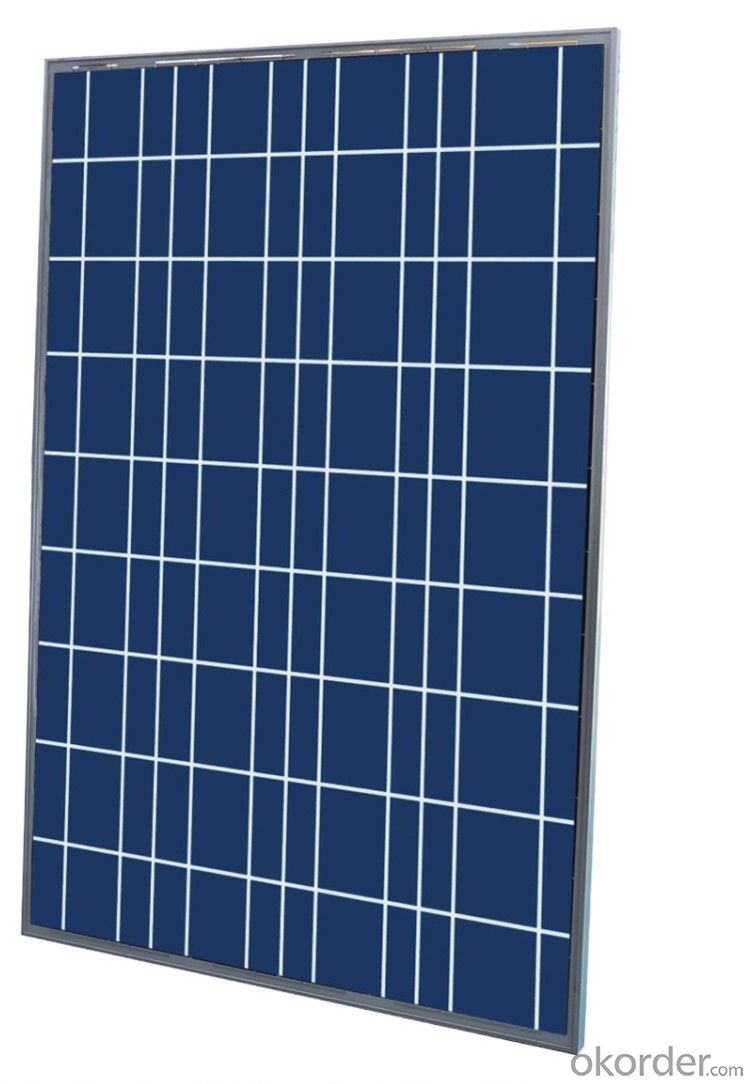

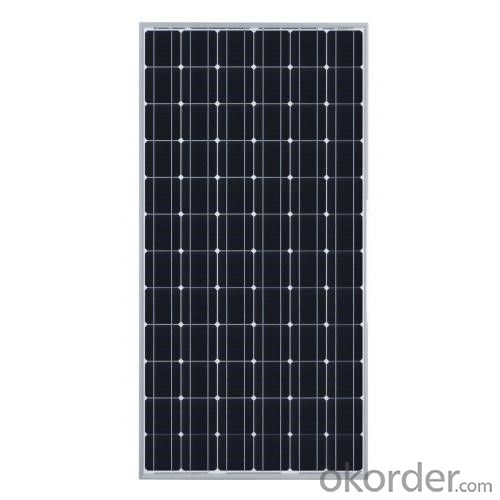

Solar Panel/Solar Module description
Our solar panel has always been a best seller. All types of solar modules are certified according to IEC61125, IEC61730 standards.
Along with regular solar modules, we can produce sliced cells solar modules between 10W-320W, according to customer's special requirements on power, appearance and etc
Our solar panels assembled in compliance with our unique quality standards:
·A-grade solar cell and strict control of production processes ensure the excellent performance and reliable quality.
·Tempered glass with high transmittance ensures the maximum efficiency among cell modules with the same efficiency.
·The module is encapsulated with high-performance EVA, anti-aging resistance and TPT, hot seal made of flame resistance.
·High-strength aluminum alloy frame ensures strong mechanical properties of the module.
·Waterproof junction box passed IP65, minimize the damage of solar power hot spot effect.Quality Warranty 25 years limited warranty on power output
90% power output assurance for 10 years
80% power output assurance for 25 years
Solar Panel Application
1. large or small on-grid or off-grid solar power station
2. commercial/ industrial building roof-top/ ground mounting system
3. residential/ small home power system.
4. solar refrigerator, solar air condition, solar heater, solar lighting system
5. solar street light, solar garden light and many fields of environment protection.
Type | Electrical Data | Module Size | Weight | Number of cells series | ||||
Nominal Power | Max-Power | Max-Power | Open-Circuit | Short-Circuit | ||||
Voltage | Current | Voltage | Current | |||||
Pmax | VMPP | IMPP | VOC | ISC | ||||
Module No. | W | V | A | V | A | mm | Kg | pc |
HP-SPM10 | 10 | 17.2 | 0.58 | 21.6 | 1.31 | 340*254*17 | 1.2 | 36 |
HP-SPM20 | 20 | 17.2 | 1.16 | 21.6 | 1.93 | 340*460*25 | 1.8 | 36 |
HP-SPM30 | 30 | 17.2 | 1.74 | 21.6 | 2.57 | 350*670*30 | 3 | 36 |
HP-SPM40 | 40 | 17.2 | 2.32 | 21.6 | 3.23 | 450*670*30 | 3.5 | 36 |
HP-SPM50 | 50 | 17.2 | 2.91 | 21.6 | 3.86 | 550*670*30 | 4.5 | 36 |
HP-SPM60 | 60 | 17.2 | 3.49 | 21.6 | 3.86 | 603*670*30 | 5.3 | 36 |
HP-SPM70 | 70 | 17.2 | 4.07 | 21.6 | 4.51 | 758*670*30 | 6 | 36 |
HP-SPM80 | 80 | 17.2 | 4.65 | 21.6 | 5.17 | 758*670*30 | 6.5 | 36 |
HP-SPM90 | 90 | 17.2 | 5.23 | 21.6 | 5.81 | 935*670*30 | 6.7 | 36 |
HP-SPM100 | 100 | 17.2 | 5.8 | 21.6 | 6.46 | 935*670*30 | 6.7 | 36 |
HP-SPM110 | 110 | 17.2 | 6.4 | 21.6 | 7.08 | 1061*670*35 | 8 | 36 |
HP-SPM120 | 120 | 17.2 | 6.98 | 21.6 | 7.72 | 1061*670*35 | 8.6 | 36 |
HP-SPM130 | 130 | 17.2 | 7.56 | 21.6 | 8.4 | 1277*670*35 | 9.8 | 36 |
HP-SPM140 | 140 | 17.2 | 4 | 21.6 | 4.4 | 1480*670*35 | 10.9 | 36 |
HP-SPM150 | 150 | 17.2 | 4.17 | 21.6 | 4.58 | 1480*670*35 | 10.9 | 36 |
