Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1000 watt
Supply Capability:1000000 watt/month

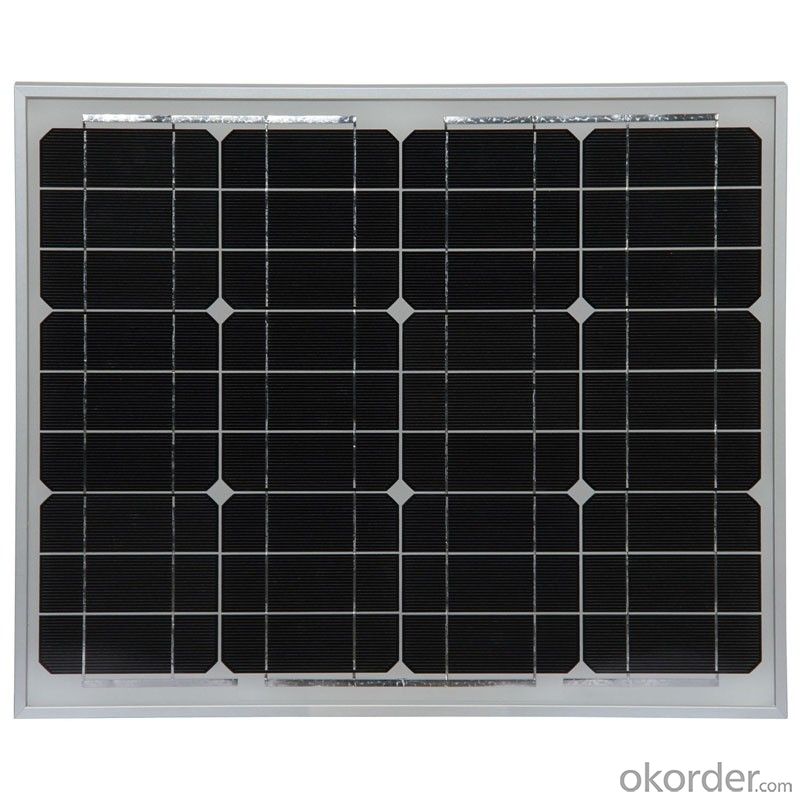

Product Description
Product Description
Features:
1. High conversion efficiency based on innovative photovoltaics technologies
2. High reliability with guaranteed +/-3% power output tolerance, ensuring return on investment
3. Withdraw high wind-pressure and snow load (passed IEC 5400 PA mechanical loading test), and extreme temperature variations
Quality and Safety:
1. 25-year power output transferable warranty
2. Rigorous quality control meeting the highest international standards
Recommended Applications:
1. Solar street light, solar road light
2. On-grid utility systems
3. On-grid commercial systems
4. Off-grid ground mounted systems
5. Other related solar products
Maximum Power | 100Wp |
| Power Tolerance | 1%-3% |
| Optimum operating voltage | 17.5V |
| Optimum operating current | 5.71A |
| Open ciruit voltage | 21.5V |
| Short circuit current | 1.95A |
| MaximStorage temperatureum system voltage | 1000V DC |
| Voltage temperature coefficient | -155& plusmn; 10mV/ C |
| Current temperature coefficient | -0.06& plusmn; 0.01%/C |
| Power temperature coefficient | -0.5& plusmn; 0.05%/ C |
| Cell type | monocrystalline silicon, polycrystalline silicon |
| Number of cell(pcs) | 4*9 PCS |
| Backing | TPT |
| Operating temperature | -40 C+85 C |
| Storage temperature | from-40 C~+85 C |
| Voltage standoff | AC200V DC3000V |
| Maximum wind resistance | 60m/s |
| Surface maximum load capacity | 200Kg/M2 |
| Maximum hail load capacity | 25mm, 80km/h |
| Efficiency of panel | 14.50% |
