Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:3 m.t.
Supply Capability:20000 m.t./month

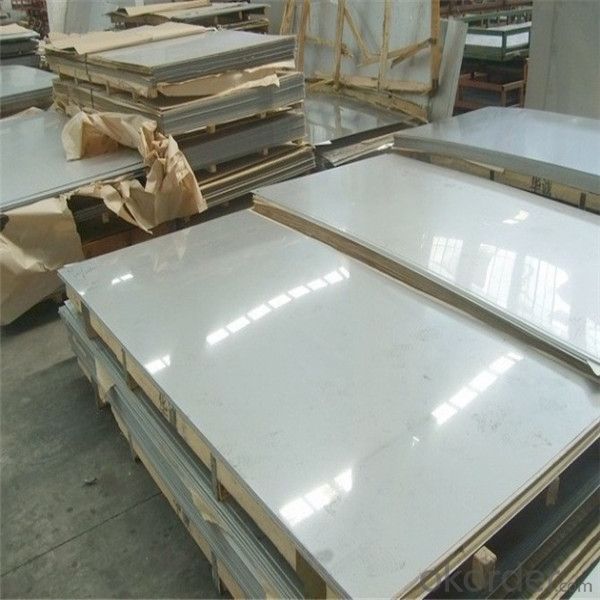

304 St 304 Stainless Steel Sheet ainless Steel Sheet MetalLow Price 2B 1.5mm 4X8 Hard Stainless Steel Sheets 201
Product Description
Material | 201 304 410 409 430 |
Technology | Cold Rolled |
Thickness | 0.12 mm~2.0mm (tolerances ±0.02 mm) |
Width | 10.0 mm ~1240 mm (tolerances ±0.02 mm) |
Processing | Pickling / Straighten / Flatten / Leveling |
Form | Rolling Coils / Cutting Sheets / Stamping Circles |
Edge | Mill Edge / Slitting Edge |
Annealed | Full hardness to Deep drawing quality (DDQ) |
Surface | BA - processed with bright heat treatment after cold rolling. |
2B - after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | |
2D – matt finish, best choice for deep drawing | |
Protection | 1. Inter paper available |
2. PVC protecting film available | |
All standard products are supplied without inter paper & PVC film. If needed, please inform. | |
Chemical and Mechanical Properties:
GRADE | C | Mn | Si | P | S | Cr | Ni | Cu | T.S. Mpa/min | P.S. Mpa/min | Elongation (%) |
304 | 0.04-0.06 | 1.0-1.2 | 0.25-0.45 | ≤0.40 | 18.1~18.5 | 8~8.2 | ≤0.50 | ||||
409L | ≤0.08 | ≤1 | ≤1 | ≤0.05 | ≤0.03 | 10.5-11.75 | - | 380 | 205 | 22 | |
410 | ≤0.15 | ≤1 | ≤1 | ≤0.04 | ≤0.03 | 11.5-13.5 | ≤0.75 | - | 440 | 205 | 20 |
430 | ≤0.12 | ≤1 | ≤0.75 | ≤0.04 | ≤0.03 | 16-18 | ≤0.75 | - | 450 | 205 | 22 |
201 High Cu | ≤0.15 | 5.5-7.5 | ≤0.75 | ≤0.06 | ≤0.03 | 13.5-15.0 | 1.2-1.5 | 1.4-1.5 | 520 | 275 | 55 |
201 Half Cu | ≤0.15 | 5.5-7.5 | ≤0.75 | ≤0.06 | ≤0.03 | 13.5-15.0 | 1.2-1.5 | 0.8-1.0 | 520 | 275 | 55 |
