Loading Port:Shenzhen
Payment Terms:L/C,T/T
Min Order Qty:3000 Pcs pc
Supply Capability:100000 Pcs Per Month pc/month

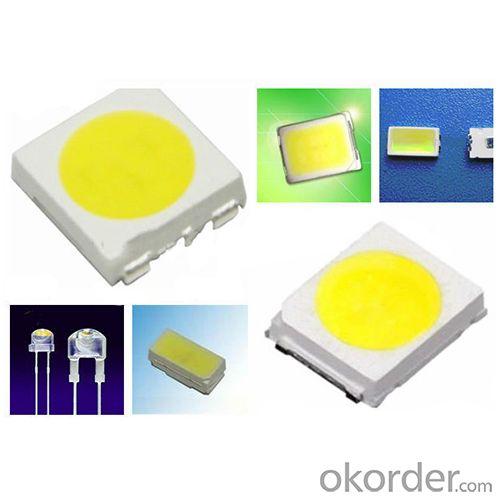

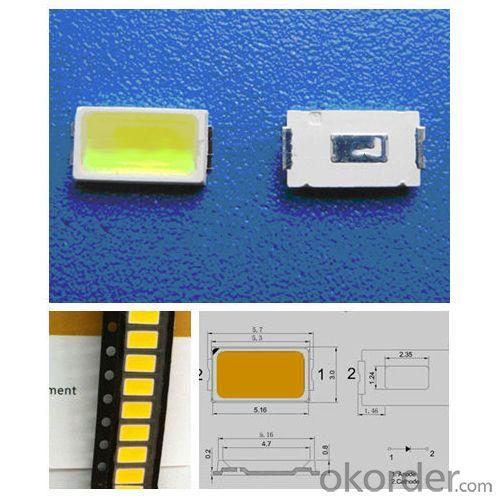

0.5W epistar 5630 5730 SMD LED
Product Datasheet:
| Model: high bright 0.5W 5630 5730 smd | ||||
| Voltage: DC: 2.8~3.8V | ||||
| Current: 150mA | ||||
| LED Power: 0.5W | ||||
| CCT: 2600-8000K | ||||
| Ra: 60-80 | ||||
| Brightness: 45-50lm 50-55lm | ||||

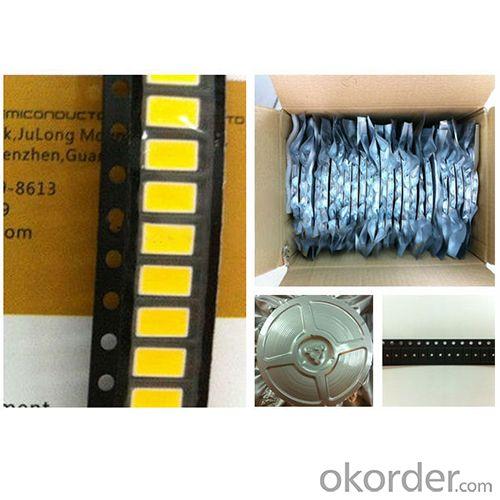

| Packing: 3000pcs/reel, 120K/CTN |
Absolute Maximum Rating (Ta=25°C) e.g.
Item | Symbol | Value | Unit |
Peak Forward Current | IFp | 500 | mA |
Reverse Voltage | VR | 5.0 | V |
Continuous Forward Current | IF | 150 | mA |
Operating Temperature | Topr | -40 to 85 | °C |
Storage Temperature | Tstg | -40 to 105 | °C |
Lead Soldering Temperature | Tsol | 260°C For 3 Seconds | |
Characteristics ( Ta=25°C) e.g.
Parameter | Condition | Symbol | Min | Typ | Max | Units |
Power Dissipation | IF=150mA | Pd | - | 0.5 | - | w |
Correlated Color Temperature | IF=150mA | CCT | 2500 | / | 8000 | K |
Forward Voltage | IF=150mA | VF | 2.8 | 3.2 | 3.8 | v |
Reverse Current | VR=5V | IR | / | / | 10 | μA |
Chromaticity Coordinates | IF=150mA | X | / | 0.31 | / | |
Y | / | 0.33 | / | |||
Luminous Flux | IF=150mA | φv | 40 | 50 | LM | |
Color Rending Index | IF =150mA | CRI | 70 | / | / | Ra |
Full Viewing Angle | IF=150mA | 2θ1/2 | / | 120 | / | deg |
| Advantages: | |||||||
| 1. Own packaging technology, with good quality and high brightness. | |||||||
| 2. led with Low lighting attenuation,Conversion factor can reach 90% | |||||||
| 3. Special design good for heating output. | |||||||
| 4. Long lifespan of up to 30,000 hours | |||||||
| 5. Professional manufacturuer with seven years experience in leds | |||||||
| 6. Fast delivery, and competitive price | |||||||
| 7. Experienced workers, automatic making machine and testing machines |
| Applications: | ||||
| 1. Indoor and outdoor commercial lights | ||||
| 2. Backlighting and SMD type indicators | ||||
| 3. LED moudle | ||||
| 4. Decoration lights | ||||
| 5. Auto lamps | ||||
| 6. Led flexible/rigid strips | ||||
| 7. LED tubes. | ||||
| 8. Led bulbs |
Delivery:
Shipping Service | Estimated Delivery Time |
DHL | 2-8 business days |
FedEx | 3-8 business days |
TNT | 2-10 business days |
UPS | 1-7 business days |
EMS | 6-14 business days |
ePacket | 7-12 business days |
China Post Air Mail | 7-15 business days |
China Post SAL | 14-30 business days |
Air freight | 3-10 business days |
By Sea | 30-40 business days |
1. 3-5 business days for Sample Orders; 7-30 business days for Bulk Orders for Bulk Orders.
2. "Business days" means Monday-Friday, excluding holidays.
3. DHL and UPS cannot ship to military or P.O. boxes address
4. The Shipping Service above is for reference only, for any other questions, please feel free to contact us.
