Underground Horizontal Waste Compacting Stations,Environmental Sanitation Equipment

Loading Port:China main port

Payment Terms:TT OR LC

Min Order Qty:1 unit

Supply Capability:10 unit/month

Product Description:

Profile

    The product is an underground mechanical which has an electro-mechanical liquid integrated garbage treatment equipment with garbage compression and storage function. The utility model is mainly composed of a compression box, a compression mechanism, a lifting mechanism, a deodorizing sewage discharging device and an electro-hydraulic control system; it makes the garbage can be unloaded, compressed and stored together, the whole falls to the ground, and the underground space is used to seal the garbage in the box, so there is no garbage exposure on the ground; Sewage from compressed garbage through the sewage pipe directly into the well, and then by the sewage pump into the city sewage pipe network, completely solve the garbage collection, storage, environmental pollution, low operation efficiency problems. It is widely used in urban residential areas, industrial areas, commercial areas, large flats, residential areas, schools, institutions, parks, scenic spots and other places.

Technical characteristics

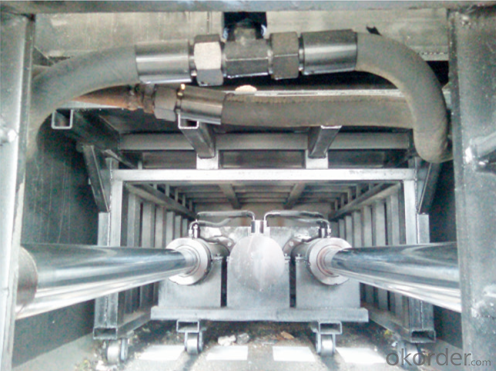

1.Compression mode: adopts horizontal three cylinder or single cylinder compression, high compression force, high compression ratio.

2.Operating system: using advanced PLC programming control system, with automatic operation and protection function, effectively reduces the labor intensity of operators, improves operation efficiency.

3.Super compression force, sewage discharge completely, without secondary pollution.

4.The utility model has the advantages of compact structure, small occupation area and high field utilization.

5.Full hydraulic operation, small environmental noise, large amount of waste disposal, and effective improvement of the labor environment.

Underground Horizontal Waste Compacting Stations,Environmental Sanitation Equipment

Underground Horizontal Waste Compacting Stations,Environmental Sanitation Equipment



Model

WTZ100TDSLZ14

WTZ100TDSLZ100

WTZ100TDSLZ8

WTZ45TDSLZ6

Overall Dimensionsmm

11750x3380x4000

9900x3350x4000

9000x3350x4000

6800x3110x3610

Most condensation force

100

100

100

45

Compression Method

Horizontal Compaction

Horizontal Compaction

Horizontal Compaction

Horizontal Compaction

Hydraulic system pressureMPa

21

21

21

21

Motor Power

22

22

22

18.5

Single piece of garbage weightkg

Daily Capacity

voltage

380/50HZ

380/50HZ

380/50HZ

380/50HZ

PLC Programmer

Siemens

Siemens

Siemens

Siemens

Water source

Domestic Water

Domestic Water

Domestic Water

Domestic Water



Underground Horizontal Waste Compacting Stations,Environmental Sanitation Equipment

Underground Horizontal Waste Compacting Stations,Environmental Sanitation Equipment

Feature

- Less land occupation

The overall land area of the utility model is only 15 to 30 square meters, which is convenient for site selection and planning. Because of the tight structure of the equipment and the buried modular design, when the interior is arranged, it makes the workshop size small; and the building is not needed for outdoor arrangement.

- Good compactness and high transport efficiency

The equipment maximum compression force is 50-80t, combined with PLC automatic compression technology, box drainage and gas technology, the compression ratio of garbage is up to 3:1; the water from garbage is also removed, and the garbage transfer efficiency is very high.

- Good environmental protection

The equipment adopts the underground design, and the transportation use the secret garbage truck without secondary pollution. The equipment has less influence for the surrounding environment and has good environmental protection.

Operation Procedure

Garbage collection and compression

The garbage collector or trolley is pushed from the top surface of the box to the feeding port and dumped into the garbage. At the same time, the spraying dust settling device starts to work. After the feeding is finished, the garbage collection truck leaves the feeding position. At this point, the compressed button can be operated to automatically compress the garbage, after several times pouring and compressing until the box is full of garbage, then ready to transfer.

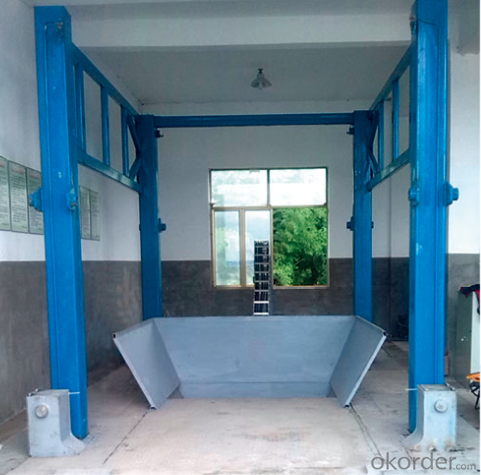

Box Lifting

When the garbage vehicle transported in place, use lifting button to make the box steady rise, stop it until reach the unloading height, then command the garbage transport vehicle to the garbage station, arrived at the designated location; after that, operate the descending button, make the bottom plate of vehicle arrive to the floor to stop, and prepare to discharge.

Push the garbage block into the garbage truck

Make sure the garbage truck is in good alignment with the refuse bin firstopen the discharge door button and open the discharge door, then Operate the material button to push the compressor forward and Push the compressed garbage into the bin.

Garbage transfer and garbage station back to place

   After the loaded garbage vehicle drive out of garbage station to the landfill , operate the unload door close button to close, make the station down to the original position, into the next cycle of operation
