Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 unit
Supply Capability:1000 unit/month
| Packaging Details: | Seaworthy packing(6 40HQ) |
| Delivery Detail: | 10-20 days finish production(can be adjusted) |
tower crane:
1. ISO9001:2008,CE,GOST certificate
2. Advanced painting line
3. France Schneider contactor
tower crane:

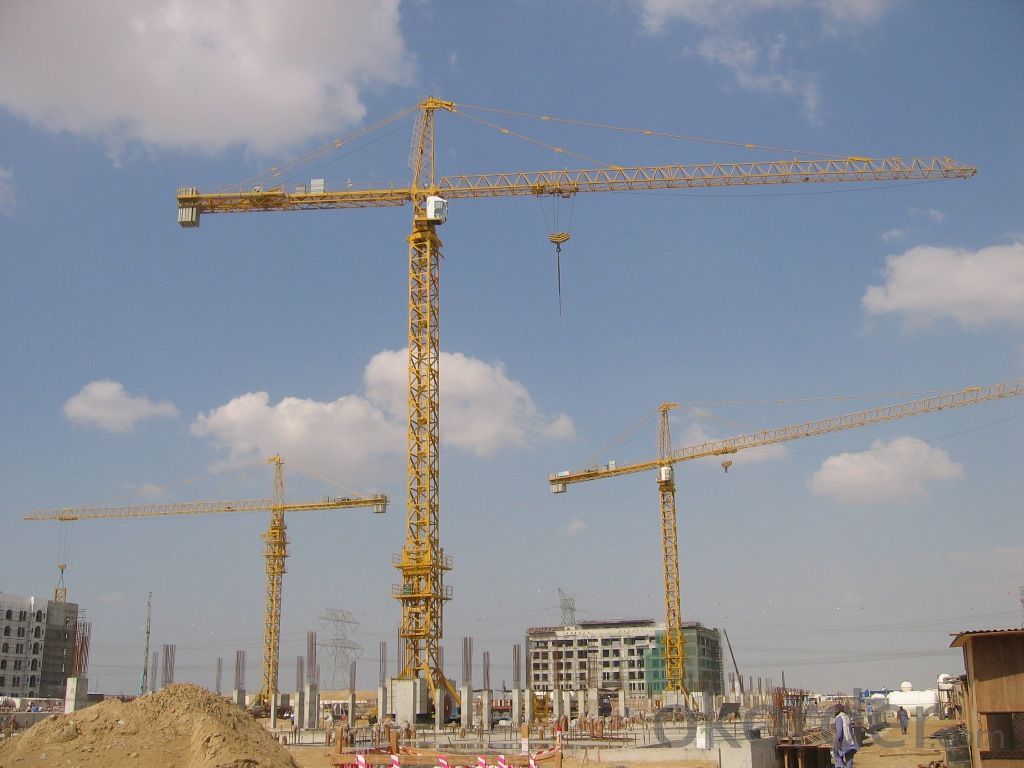

QTZ100 tower crane falls within upper-swing hydraulic climbing tower crane,which is operated by computer from related the steel structure a element to mechanisms and conventional design operations. And the max radius is 3-60m,freestanding height is 45m,attaching height is 220m,the rated load moment is 1000KN.m,tip capacity is 1.3t, . Our standard section is 1.8*1.8*2.8 steel tube, hoisting mechanism adpots three-speed motor,having three kinds of working speed meets different demands!
QTZ100(6013) parameter table
Name
|
Unit |
Parameter | ||
Rated Load moment | KN·m | 1000 | ||
MAX hoisting capacity | t | 6 | ||
Rated hoisting capacity max radius
| t | 1.6 | ||
Working radius
| m | 3---55 | ||
height |
Freestanding
| m | a=2,45 | |
a=4,45 | ||||
attaching | m | a=2,220 | ||
a=4,110 | ||||
hoisting speed |
Double rate | a=2 | a=4 | |
lifting speed | m/min | 80/40/10 | 40/20/5 | |
Slewing speed | r/min | 0.62 | ||
trolleying speed | m/min | 48/24 | ||
The max. slewing radius | m | 40 | ||
Tail slewing radius | m | 10
| ||
Temperature of working environment | -20∼+40 | |||
