Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1000 PCS/month

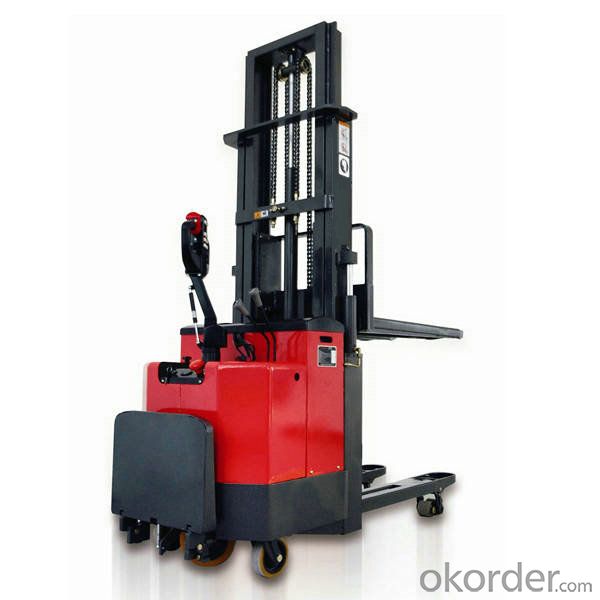

Stacker 1.0t Straddle Lifting Height 1.6-3.0mm
Model NO.:JC-SES10
Rated Loading Capacity:1000kgs Stacker
Certification:CE,ISO,CQC,Iaf,Cans
Max. Lifting Height:1.6/2.5/3.0m Stacker
Overall Dimensions:1800*1100(1380)*1990mm
Fork Length:1150mm Stacker
Fork Width:200-800mm(Adjustable Fork) Straddle Semi-Electric
Export Markets:Global
Trademark:JEAKUE
Packing:International Standard Packaging/Diesel Forklift
Standard:CE, ISO, CQC, IAF, CANS
Origin:Anhui
HS Code:8427109000
Production Capacity:2000PCS/Month
Brief introduction
Rated loading weight: 1000kg
Lifting height: 1600/2500/3000mm
Width of vehicle body (adjustable): 1100-1380mm
Height of whole vehicle body: 1990/1790/2040mm
Item No. | JK8456 | JK8457 | JK8458 | ||
Performance | Driving type | Power-driven (battery) | Power-driven (battery) | Power-driven (battery) | |
Operating type | Walking type | Walking type | Walking type | ||
Rated load capacity | kg | 1000 | 1000 | 1000 | |
Load center distance | mm | 600 | 600 | 600 | |
Distance from bearing wheel center to pivot | mm | 750 | 750 | 750 | |
Wheel base | mm | 1200 | 1200 | 1200 | |
Weight | Weight (including battery) | kg | 410 | 470 | 490 |
Wheel vehicle body | Wheel type | Nylon/polyurethane | Nylon/polyurethane | Nylon/polyurethane | |
Size of front wheel | mm | 180×50 | 180×50 | 180×50 | |
Size of rear wheel | mm | 100×40 | 100×40 | 100×40 | |
Wheels qty(front/rear) | 2/2 | 2/2 | 2/2 | ||
Tread of front wheel | mm | 680 | 680 | 680 | |
Tread of rear wheel | mm | 1020/1300 | 1020/1300 | 1020/1300 | |
Base size | Height when door frame draws back | mm | 1990 | 1790 | 2040 |
Lifting height | mm | 1600 | 2500 | 3000 | |
Max height of door frame when operating | mm | 1980 | 3030 | 3530 | |
Handle height min/max | mm | 790/1156 | 790/1156 | 790/1156 | |
Height when pallet fork declines | mm | 70 | 70 | 70 | |
Length of vehicle body | mm | 1800 | 1800 | 1800 | |
Distance from pallet fork surface to front position | mm | 650 | 650 | 650 | |
Width of vehicle body(adjustable) | mm | 1100-1380 | 1100-1380 | 1100-1380 | |
Size of pallet fork | mm | 35/100/1150 | 35/100/1150 | 35/100/1150 | |
Outside width of pallet fork(adjustable) | mm | 200-800 | 200-800 | 200-800 | |
Min ground clearance of vehicle foot center | 35 | 35 | 35 | ||
Width of right angle stacking passage, pallet 1000×1200(1200laid across pallet fork) | mm | 2250 | 2250 | 2250 | |
Width of right angle stacking passage, pallet 800×1200(1200laid along pallet fork) | mm | 2250 | 2250 | 2250 | |
Turning radius | mm | 1400 | 1400 | 1400 | |
Performance | Lifting speed, (full load/no load) | mm/s | 90/140 | 90/140 | 90/140 |
Declining speed, full load/ no load | mm/s | 120/100 | 120/100 | 120/100 | |
Parking brake | Manual | Manual | Manual | ||
Electronic motor | Watt of lifting electronic motor | kW | 1.5 | 1.5 | 1.5 |
Voltage of battery/ rated capacity | V/Ah | 12/150 | 12/150 | 12/150 | |
Weight of battery | Kg | 45 | 45 | 45 | |
