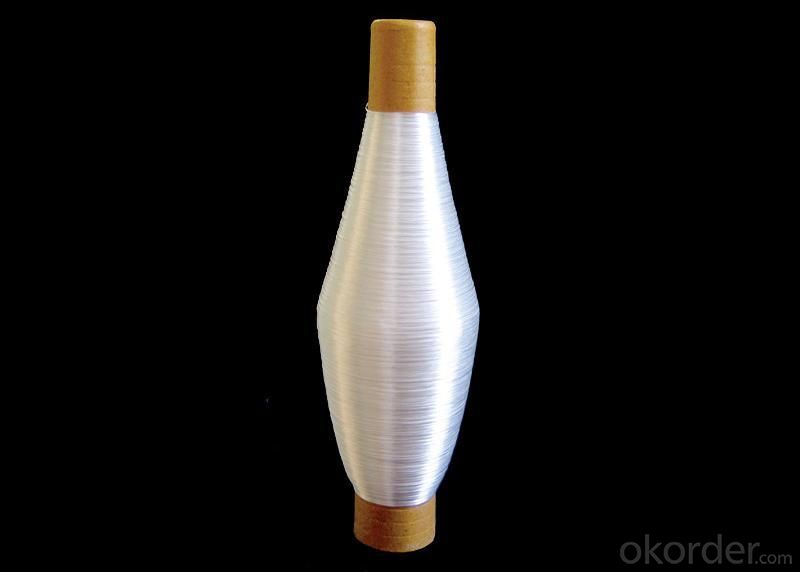

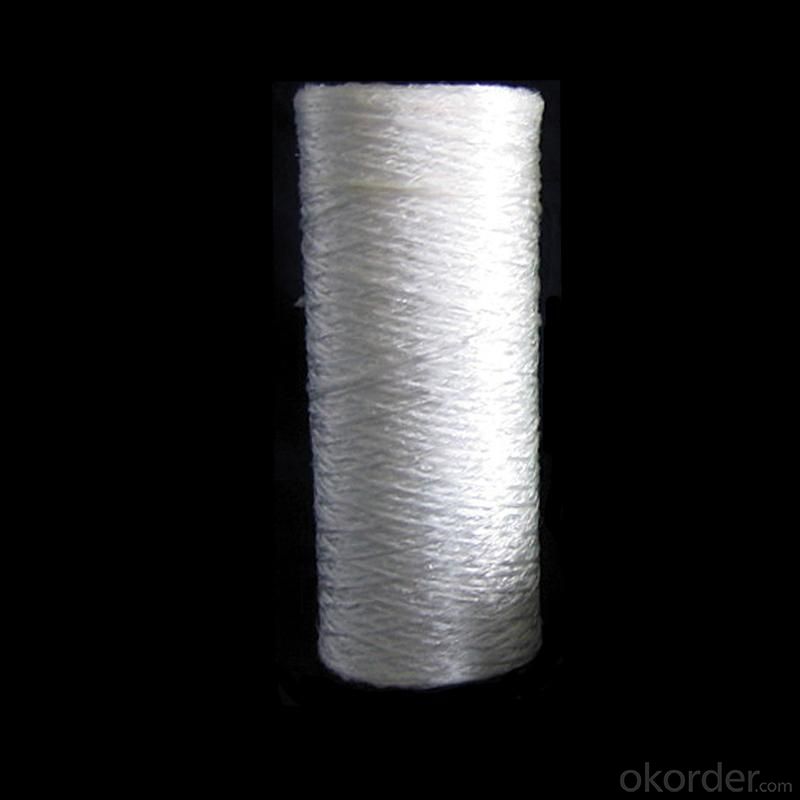

Quartz Fiber Yarn

Product Description:

General info of Quartz Fiber Yarn

Quartz yarn is made up of twisted continuous quartz filament with the diameter of 7.5 micron.

Quartz fiber Yarn Description: Quartz yarn are assemblies of fused quartz fiber continuous filaments with high thermal resistance, high mechanical strength and low dielectric properties.

This yarn can be single-strand, multi-strand, or cable twist, which allows it to be used into many standard spin processes, such as, drawnwork, weaving, intertexture, transmutation, extending break-off, multi-winding, etc.

Applications of Quartz Fiber Yarn:

Radomes
Antenna windows
Ablatives
Heatshields
Printed circuit boards
Filtration
Electrical & thermal insulation


Specifications of Quartz Fiber Yarn

Item No.:
Quartz Yarn
Filament Nominal Diameter (um)
7.5
Normal Linear Density (tex)
13.5-800
Normal Twist (T/M)
50-130
Purity Level (SIO2 CONTENT:%)
H ≥99.99
Purity Level (SIO2 CONTENT:%)
A≥99.95
