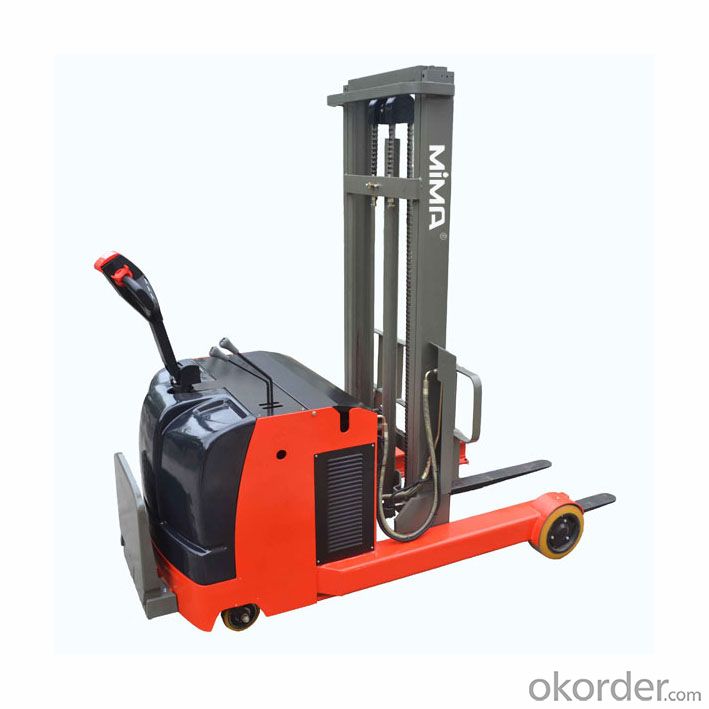

Powered Stacker China OEM Offer 1.5t (CTD16K)
Model NO.:CTD16K
Type:Powered Pallet Truck
Power:AC Motor
Load Capacity:1.6t
Fuel:Electric
Load center:>500mm
Lift height:3000~5000mm
Condition:New
Dimension:1850*746*2095mm
Support Rack Form:Double Support Rack
Motor Power:1.6kw
Battery:185ah
Voltage:12V
Export Markets:Global
Trademark:Marshell
Packing:Container
Standard:CE
Origin:China
HS Code:842890
Production Capacity:2000 Pieces Per Month
Semi-electric powered stacker main configuration:
1, maintenance-free ac drive system
2, electronic steering system
3, 12 v / 185 ah high-capacity lead-acid batteries
4, Curtis communication controller
5, import a two-speed hydraulic power unit
6, the side with quick replacement battery structure
7, a variety of specifications door frame to meet different customer needs
Marshell Semi-electric powered stacker suitable mode:
1, relatively flat cement or similar hard pavement
2, suitable for single pallet handling, stacking of the goods
3, suitable for high frequency and heavy load cargo handling, stacking
4, working time is about 5 hours
Tips: Does not apply to contain flammable and explosive gas or dust
Dimention | Parameters | unit |
Rated Loading | 1500 | kg |
lifting height | 3000 | mm |
Free lifting height | 300 | mm |
Doorframe form | double Doorframe | |
outline dimension | 1700*746*2095 | mm |
fork length | 1070 | mm |
minimum height of fork | 90 | mm |
Fork width | 160 | mm |
Loading center distance | 500 | mm |
Voltage | 12 | v |
Motor power | 1.6 | kw |
Fork outside width | 574 | mm |
rear wheel dimension | φ150*50 | mm |
front wheel dimension | φ80*70 | mm |
battery | 185 | Ah |
oil pump motor power | 1.6 | kw |
doorframe fall height | 2095 | mm |
the maximum height of door frame during operation | 3500 | mm |
