Loading Port:Shenzhen
Payment Terms:L/C,T/T
Min Order Qty:10 Pcs pc
Supply Capability:100000 Pcs Per Month pc/month
General Introduction
9w cob leds is Suitable for different working environment, super excellent heat conduct design
Specification
Item | 9w smd COB 5630 leds specification |
Commedity | China supplier 3w cob led factory direct sale |
Color | warm white, natural white, pure white,cool white, red, yellow, green, blue,orange,purple and other colors you want |
Chip brand | Epistar ,taiwan |
Lumens | 80-110LM |
Power | 9w |
Current | 300mA |
Voltage | 27-32v |
CRI | >75 >80 >85 |
CCT range | 2800-3200k (warm white) 4000-5000k (Natural white) 5000-6500k (Pure white) >7000k (Cool white) |
Working temperature | -20 °C-+40 °C |
Super long lifetime | 40,000 H long lifetime |
Max Junction Temperature | 150°C |
Certification | CE, Rohs LM80 |
Lowest thermal resistance | 8°C/W |
Warranty | 3 years |
Place of Orign | Shenzhen Guangdong China |
Feature | Anti UV |
Technical | Silicone PC molding |
Advantages

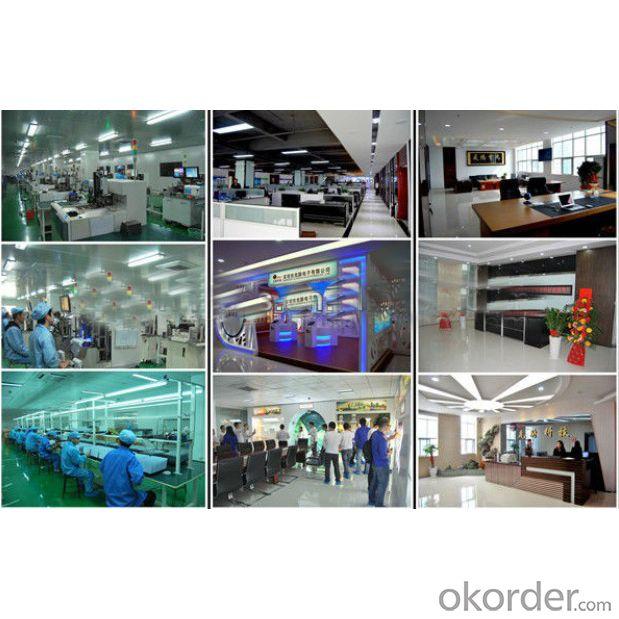

1.Professional led chip manufacturer
2.Experience technical staff
3.Quality control
4.Completive price
5.Good service
6.Small order available
7.Top quality raw material
8.International Approval
9.Prompt delivery
10.Guarantee/warranty
11.Excellent packaging
12.Environment friendly
13.Excellent performance

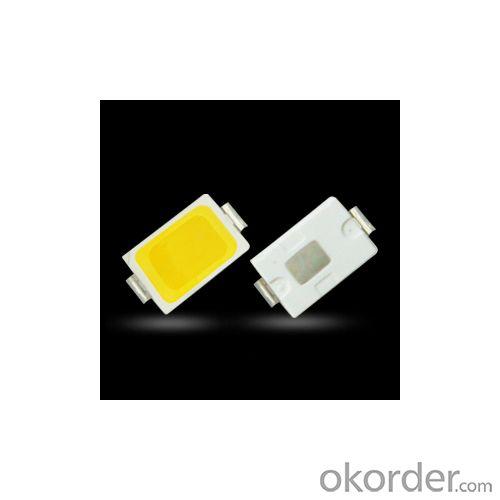

Specification of 5730 product
Lamp bead power: 0.5 W/pcs bead 50 to 60 LM/pcs bead
Color temperature: white light: 6000-6500 k, Warm white 3000-3200 k
SMD QUANTITY:
3W 6pcs 5730beads 3series2parallel 300-360LM
5W 10pcs 5730beads 5series2parallel 500-600LM
7W 14pcs 5730beads 7series2parallel 700-840LM
9W 18pcs 5730beads 9series2parallel 900-1080LM
12W 24pcs 5730beads 12series2parallel 1200-1440LM
15W 30pcs 5730beads 15series2parallel 1500-1800LM
18W 36pcs 5730 beads 18series2parallel 1800-2160LM
Do current exceeds 300mA otherwise light fades quickly addition must add radiator, such as Bulb, Downlight, use not directly bare board, otherwise the light fades quickly
Size:
3W: φ32mm×1.6mm
5W: φ50mm×1.6mm
7W: φ50mm×1.6mm
9W: φ65mm×1.6mm
12W: φ 65mm×1.6mm
15w: Diameter 85mm×1.6mm
18w: Diameter 100mm×1.6mm
attention & cautions
1. Over-current-proof
Customer must apply resistors for protection; otherwise slight voltage shift will cause big current change (Burn out will happen).
2. Storage
2.1 It is recommended to store the products in the following conditions
Humidity: 60% R.H. Max.
Temperature: 5°C~30°C(41°F~86°F)
2.2 Shelf life in sealed bag: 12 month at <5°C~30°C and <30% R.H. after the package is opened,
the products should be used within 24hr s or they should be kept stored at<20% R.H. with zip-lock sealed.
3. Vision Advisory Claim
Users should be cautioned not to stare at the light of this LED product. The bright light can damage the eye.
Trade Terms
Payment terms | T/T, L/C |
Minimum order quantity | 1pcs |
sample lead time | 3-7days |
production lead time | 7-15days |
packing standard | single box depart |
shipping port | China main port |
shipment | by express(DHL/UPS/FEDEX) air or sea |
