Loading Port:China Main Port
Payment Terms:TT or L/C
Min Order Qty:1 Set set
Supply Capability:10 Sets Per Month set/month

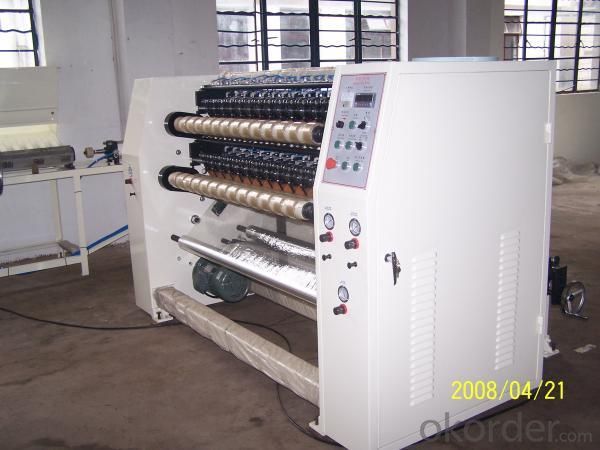

Technical Data of High Precision Tape Slitting Machine S1600
Name Tape Slitting Machine
Item No. S1600
Effective Width (mm) 1300
Max. Unwinding Diameter (mm) 800
Min. Slitting Width (mm) 18
Rewinding Diameter of Finished Products (mm) {4 Shafts(1")}
Rewinding Diameter of Finished Products (mm) {4 Shafts(3")} 150
Rewinding Diameter of Finished Products (mm) {2 Shafts(3")} 300
Mechanical Speed (M/min) 10~225(50HZ)
Total Power (KW) 5.5
Dimension(L x W x H) (mm) 2590x1300x1420
General Information of High Precision Tape Slitting Machine S1600
Mainly used to slit BOPP tapes. May also be used to cut PET tape, kraft paper tape, etc. This machine is centralized in a control panel. Three-step length setting. This length setting provides extremely smooth rewinding operation to ensure accurate rewinding length. Automatic shaft change. Once the rewinding is done, the machine will automatically perform shaft change for convenient and efficient operations.
Features of High Precision Tape Slitting Machine S1600
Equipped with circular knife; Using 4-shafts automatic shift rewinding and continuous operating to improve working efficiency; Speed stepless adjustable by frequency converting;Equipped with3-sections counter that can automatically slow down and stop the machine from high speed;Pneumatic control of unwinding tension rewinding tension controlled by independent; Equipped with arc stretching of materials; Auto-labeling system and equipment with sound insulation cover is optional.
Packing of High Precision Tape Slitting Machine S1600
Packed with wooden carton of customized size and then placed on the pallet.
Remarks of High Precision Tape Slitting Machine S1600
Due to machine development, above information may be changed at any time without prior notice. The actual specifications are according to the agreement between buyer and seller.
