Loading Port:Shanghai
Payment Terms:TT or LC
Min Order Qty:10 m.t.
Supply Capability:100000 m.t./month

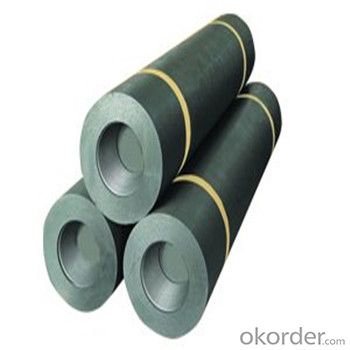

Graphite Electrode
---------------------------------------
diameter from 50mm to 600mm (2" to 24")
grades including RP, HD, HP, SHP, UHP.
Nipples: 3 TPI or 4 TPI.
---------------------------------------
We have full set of production line for graphite electrodes.
Our products are characterized by superior compact structure, good electrical and thermal conductivity, high resistance to oxidation and corrosion in high temperature. The regular power graphite electrodes graphite electrodes for heavy industrial arc furnaces, steel mills, foundries, and other applications.
As one of the most professional graphite electrode manufacturers in China, passed ISO9001:2000 certified.
We're glad to quote you a most competitive price according to your specification.
----------------------------------------------------------------------------------------
Physical Properties | RP Grade (Dia.50-600mm) | HP Grade (Dia.50-600mm) | UHP Grade (Dia.50-600mm) | |
Electrical Resistance (max) μΩ-m | Electrode | <8.0 | <7.0 | <6.0 |
Nipple | 6.5 | 5.5 | 5.0 | |
Bending Strength (min) Mpa | Electrode | 11.0 | 12.0 | 12.0 |
Nipple | 14.0 | 14.0 | 16.0 | |
Elastic Modulus (max) Gpa | Electrode | 9.0 | 12.0 | 12.0 |
Nipple | 12.0 | 14.0 | 14.0 | |
Bulk Density (min) g/cm3 | Electrode | >1.58 | >1.65 | >1.68 |
Nipple | >1.70 | >1.72 | >1.73 | |
C.T.E (max) ×10-6/C | Electrode | 2.7 | 2.5 | 2.4 |
Nipple | 2.5 | 2.2 | 2.0 | |
Ash (max) % | Electrode | <0.30 | <0.30 | <0.20 |
FAQ
①How about your company？
A world class manufacturer & supplier of castings forging in carbon steel and alloy steel，is one of the large-scale professional investment casting production bases in China,consisting of both casting foundry forging and machining factory. Annually more than 8000 tons Precision casting and forging parts are exported to markets in Europe,America and Japan. OEM casting and forging service available according to customer’s requirements.
②How to guarantee the quality of the products？
We have established the international advanced quality management system，every link from raw material to final product we have strict quality test；We resolutely put an end to unqualified products flowing into the market. At the same time, we will provide necessary follow-up service assurance.
