Ductile Iron Pipe of China C30 DN200-DN1000 EN545/EN598 for Water Supply

Product Description:

1,Ductile Iron Pipe Description :

Pipes confirm to ISO2531,K9 class,T type joint,6m long,with inside cements lining conform to ISO4179,  outside Zinc spraying(130g/m2) and bitumen coating(70μm) conform to ISO8179.

Our products have been sold to many international market,such as Middle East and South East Asia and Africa.

DI pipe fittings are manufactured according to ISO 2531 or BS EN545 or BS4772 FOR POTABLE WATER ,internal is cement lining or wet epoxy coating;External is zinc plus bitumen or wet epoxy  coating. We also manufacture ductile iron fittings with fusion bonded epoxy both inside and outside. All the producets are sutible to water pipes fields.

2,Main Features of the Ductile Iron Pipe:

. Material: Ductile iron grade 500-7/ 450-10 in accordance with ISO1083

. Standard: ISO 2531, EN545, EN598, ANSI, AWWA

. Certificate: ISO9001, ISO14001, SGS, NSF, WRAS

. Test: In accordance with ISO 2531 / EN 545 / EN598 and 100% water pressure test

. Length: 6m or cut into 5.6m, 5.7m, 5.8m

. Internal Lining: Cement, conform to ISO4179

. External coating: Zinc + Bitumen, conform to ISO8179

. Rubber: NBR, SBR, EPDM according to ISO4633 / EN681.1

. Note: The gaskets, bolts & nuts are supplied respectively as your special requirement

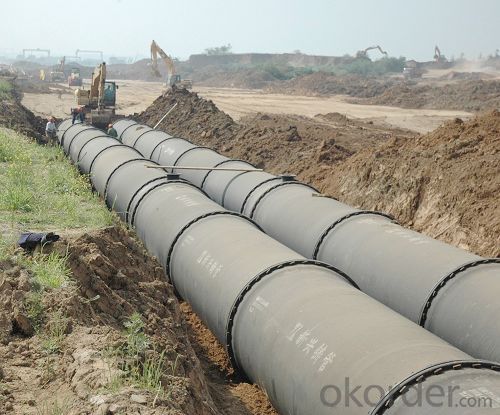

3,Ductile Iron Pipe Images:

4. Ductile Iron Pipe  Specification

Surface Finishes:Bare, Oiled, Mill Varnish, Galv,FBE, FBE Dual, 3LPE, 3LPP, Coal Tar,Concrete Coating and Tape Wrap
End Finishes: Beveled, Square Cut, Threaded, hat
Additional Services: Internal Coating
Packaging: packed in bag, plastic bag, steel strip, steel wire,double wire, iron box, wooden box,

tarpaulin, plastic sheeting
Inspection: MOODY SGS BV GL DNV ABS LIOYD’S
Test :X-ray, UT, magnetic particle,inspection,hydrostatic test.
Processing service :Beveling, Threading, Slotting, Cut-to length, Bends, Quench and Temper, Fabrication, Double-jointing and On-site assistance
Documentary MTC: material certification,Origin certification, CI or PI,Test Report, export licence, handling order, B/L,insurance policy,shipping instructions, contract, packing list etc.
Internal lining:      ductile iron pipes shall have an internal cement mortar lining in acc with ISO4179.
External coating:  ductile iron pipes shall be externally coated with metallic zinc spray plus a further layer of resin painting to ISO8179.

Gasket:              100% SBR/NBR/EPDM rubber gasket in accordance with ISO4633.

Payment term:    L/C, T/T.
5.FAQ:

We have organized several common questions for our clients，may help you sincerely：

1.Q: Why would you choose ductile iron pipe rather than other pipe materials?

 A:The reasons are obvious for that not only ductile iron pipe possesses the inherent strength and flexibility of ductile iron, combined with proven corrosion protection systems, but also the cost savings can be achieved from design to installation and commissioning.

 2.Q:Why can you guarantee the inner of pipes can’t be corroded?

 A: High alumina cement mortar lining and sulphate-resistant cement mortar lining. These two special linings are applicable to inner anti-corrosion for sewage pipes, improving resistance to erosion of the sewage components.
