Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 PCS
Supply Capability:1000 PCS/month

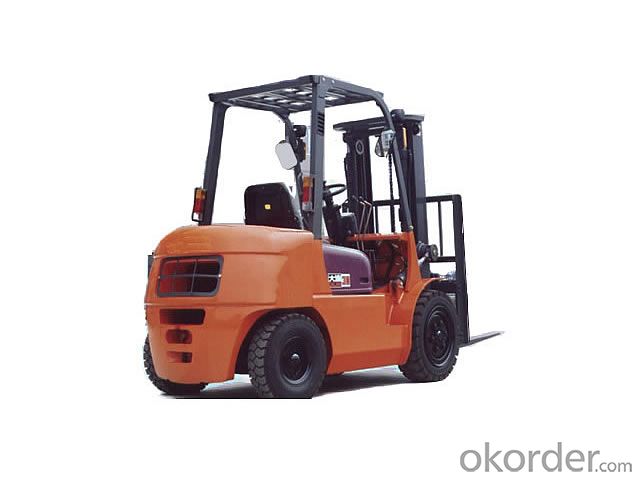

Diesel Forklift Truck 5tons Logistics Lifting Equipment
Model NO.:SH50F
Type:Powered Pallet Truck
Power:Diesel Engine
Load Capacity:1T - 5T
Fuel:Diesel
Load center:500mm
Lift height:>5000mm
Condition:New
Load Capacity (T):5t
Power Type:Diesel
Lifting Height:3000mm
Fork Thickness:55mm
Backrest Height:1275mm
Fork Length:1070(1220)Mm
Export Markets:Global
Trademark:sinoheng
Packing:Container, FCL/LCL
Standard:CE
Origin:Shandong, China
Production Capacity:300 PCS/Month
Logistics Lifting Equipment Diesel Forklift Truck 5tons
1. Powerful Engine
2. Hydraulic Gear-box
3. Control Valve
4. Driving Bridge
5. Steering Bridge
6. Caution Light
The forklift with CE certificate, and exquisite design, you can enjoy competitive price and best service.
Technical Parameters:
Product Name | 5 Ton Counterbalance Diesel Forklift Truck | |
Model | SH50F | |
Load capacity (kg) | 5000 | |
Load center (mm) | 500 | |
Power type | Diesel | |
Max. lifting speeds ( with load ) mm/s | 375 | |
Max. driving speeds ( with/without load ) km/h | 20/24 | |
Max. towing ( with/without load ) kn | 31/18 | |
Gradeability (with/without load ) % | 15/20 | |
Lifting height (mm) | 3000 | |
Free lift (mm) | 150 | |
Tilting angles ( forward-backward ) ( .) | 6/12 | |
Min. turning radius (mm) | 3000 | |
Min. right angle aisel width ( mm ) | 2750 | |
Min. under-clearance (mm) | 170 | |
Dimension | Overall length (including fork)mm | 4350 |
Overall width ( mm ) | 1400 | |
Overall height (mast lowered )mm | 2330 | |
Overall height (mast extend )mm | 4265 | |
Overall height to overhead guard (mm) | 2330 | |
Fork overhang (mm) | 565 | |
Wheel base (mm) | 2150 | |
Tread | Front tread (mm) | 1180 |
Rear tread (mm) | 1190 | |
Tyre | Front tyre | 300-15 |
Rear tyre | 7,00-12 | |
Total weight (kg) | 6800 | |
Fork width (mm) | 150 | |
Fork thickness (mm) | 55 | |
Backrest height (mm) | 1275 | |
Fork length (mm) | 1070(1220) | |
Engine | Engine model | LR4A3/4JR3 |
Rate power (KW) | 59 | |
Rotate speed at Rate power (rpm) | 2400/2200 | |
Max. torque (nm) | 275/300 | |
Rotate speed at max torque (rpm) | 1600/1800 | |
Type of power shift | Tor-non |
