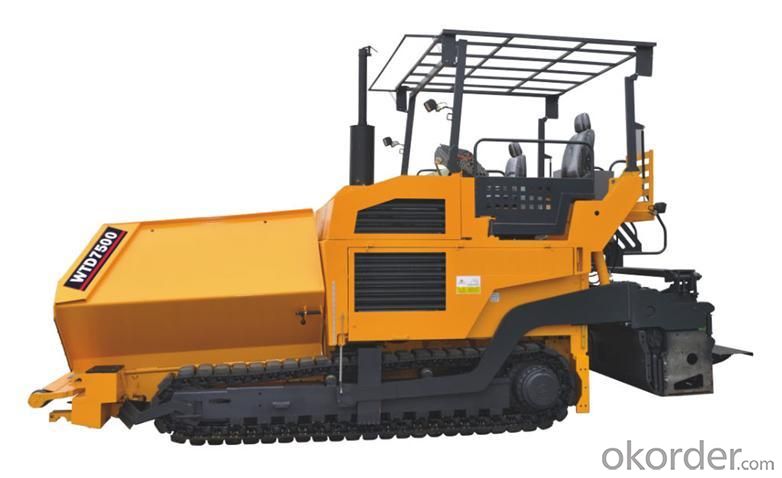

Product Name: Asphalt Paver WTL6000
1. Product Feature of Asphalt Paver WTL6000
Our hydraulic asphalt paver uses imported CUMMINS engine with high power reserve coefficient six sets of hydraulic drive systems and three sets of control systems independently drive and control left and right crawler attachments, material delivery devices and distribution devices.
2. Specification of Asphalt Paver WTL6000
Item | WTL6000A | |
Main Parameter | Travel model | Wheel Type Rear Drive |
Basic Paving Width | 2.5 | |
Maximum Paving Width | 6.0 | |
Maximum Paving Thickness | 150 | |
Working Speed | 0-11 | |
Running Speed | 0-11 | |
Theoretical Productivity | 400 | |
Hopper Capacity | 12 | |
Gradeability | ≥20 | |
Leveling Tolerance (Wave) | 5 | |
Transverse Wave Error | ±0.02 | |
Arch degree Adjusting Range | -1～+3 | |
Engine | Manufacturer | Dongfeng Cummins |
Modell | 4BTA3.9-C125 | |
Fuel Tank Capacity | 116 | |
Rated Power | 93 | |
Rated Speed | 2200 | |
Electric System | 24 | |
Emission Standard | Tier1 | |
Mangle System | Screed Model | Hydraulic Telescopic |
Hydraulic Telescopic Range | 2.5～4.5 | |
Compaction Type | Single Vibration and Single Tamping | |
Tamping Frequency | 25 | |
Vibrating Frequency | 0-60 | |
Heating Type | Diesel Oil Heating | |
Dimension and Weight | Overall Length | 6290 |
Overall Width (Basic Segment) | 2690 | |
Height (With the Cab) | 3570 | |
Transportation Height | 3000 | |
Total Mass | 15 | |

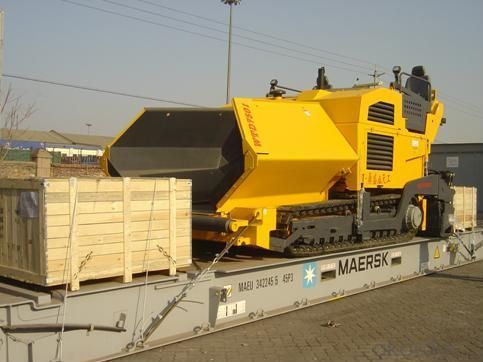

3. Delivery of Asphalt Paver WTL6000
This model could be shipped by Bulk Vessel or Roll-on roll-off vessel.
4. Primary Competitive Advantages
1) Brand-name Parts
2) Country of Origin
3) Competitive Price
4) Good Product Performance
5) Prompt Delivery
6) Quality Approvals
7) Good Reputation
8) Expedite Communication
9) Good Packaging
10) Distributorships Offered
11) One Step Service
12) Good Quality Service
13) Small Orders Accepted
14) Overseas Service Branches
